NITTAOMEGA XC30

Japanese site



NITTAOMEGA XC30

* It is recommended to purchase the connecting cable from us because this product uses a special connector.



Features

  • Payload capacity 30kg
  • Large bore cylinder and cam lock system
  • Built-in chuck / unchuck sensor
  • Abundant variety of applications



Application

  • Tool change for stripping pressed or formed products
  • Material handling tool change for arc / spot welding
  • Tool change for polishing, deburring and assembly
  • Diversified material handling tool changes



Dimensional outline

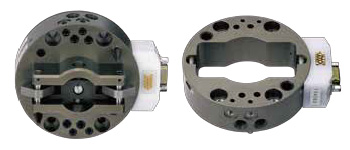

NITTAOMEGA XC30



Specifications

Payload capacity 30kg
Allowable moment 147Nm (1500 kgf-cm)
Allowable torque 147Nm (1500 kgf-cm)
Housing diameter φ100mm
Combined profile 60mm
Main body material Aluminum Alloy
Position repeatability 0.025mm
Air pressure for Working 0.39~0.59MPa(4~6kg/cm2)
Weight Robot side 1.0kg
Tool side 0.5kg
Electrical
signal
Current 3A
Quantity None or 15 pins
Pneumatic
Port
Quanitity 4 Ports Rc1/8 4 Ports(M5)
Effective
cross
section
11mm2 4mm2
CV value 0.63/port 0.23/port
Max
pressure
0.855Mpa(8.75kg/cm2)
Output signal Chuck
Unchuck
Face
Surrounding
Condition
Temperature 0~60℃ *1
Humidity 0~95%RH *2

*1 No freeze
*2 No condensation



Brochure Instruction Manual



Click here to see drawings of standard products

Robot adapter Tool adapter Wiring diagram of above adapters



*We have 24V common type and adaptor plates.
*We have cables for robot and tool both side.
Robot: W20-60S000(6m)
Tool: W15-06P000(0.6m)
