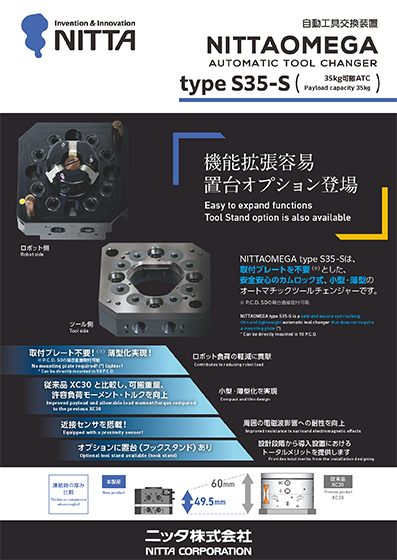

NITTAOMEGA type S35-S
Features
- No mounting plate required! lighter!
- Improved payload and allowable load moment/torque compared to the previous XC30.
- Equipped with a proximity sensor!
- Optional tool stand available. (hook stand)
Application
- Material handling for parts picking process.
- Material handling exchange.
Dimensional outline
Specifications
| Payload | 35kg | ||
|---|---|---|---|
| Allowable moment | 150Nm | ||
| Allowable torque | 150Nm | ||
| Outer size | φ94(□71) | ||
| Thickness when coupled | 49.5mm | ||
| Main body material | Aluminum alloy | ||
| Position repeatability | ±0.01mm | ||
| Operational air pressure | 0.45~0.85MPa | ||
| Main body weight | Robot side | 0.46kg | |
| Tool side | 0.27kg | ||
| Mounting pattern *Can be directly mounted in 50 P.C.D. |
Robot side | ISO09409-150-4-M6 counterbore hole | |
| Tool side | ISO09409-150-4-M6 counterbore hole | ||
| Air ports | No. of ports | Rc1/8:6ports | M5:2ports |
| Effective sectional area | 6.08㎟/port | 2.19㎟/port | |
| Cv value | 0.33/port | 0.12/port | |
| Withstand pressure | 0.85MPa | ||
| Output signals | Chuck signal | ||
| Unchuck signal | |||
| Face signal | |||
| Environment | Ambient temperature | 0~60℃ (no freezing) | |
| Ambient humidity | 0~95%RH (no condensation) | ||
