Product information

Fluid used	Air	Water
Operating temperature limit	-40℃～ +80℃	0℃～ +60℃
Maximum working pressure	0.7～ 0.8MPa	0.6～ 0.7MPa

Adopts a flame-retardant resin for the outer layer.

Excellent in flexibility, abrasion resistance and sliding properties.

With no need to peel off the outer layer.

Our line-up of products with increased inner diameters contributes to the increase in flow volume.

Fluid used	Air	Water
Operating temperature limit	-40℃～ +100℃	0℃～ +70℃
Maximum working pressure	0.7～ 1.2MPa

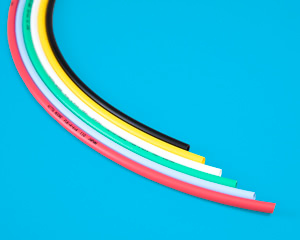

Tubes which utilize a flame-retardant resin.

Our line-up of products with increased inner diameters contributes to the increase in flow volume.

Markings along the tubing as an insertion length indicator.

Fluid used	Air	Water
Operating temperature limit	-40℃～ +80℃	0℃～ +70℃
Maximum working pressure	0.8～ 1.0MPa

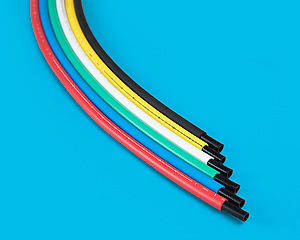

A double-layer structure with a flame-retardant resin for inner and outer layers.

Markings along the tubing as an insertion length indicator.

Before using FW tubes, peel off outer covers with Nitta’s special cutter (TC02, TC03).

Fluid used	Air	Water
Operating temperature limit	-40℃～ +80℃	0℃～ +50℃
Maximum working pressure	0.6～ 0.9MPa

Tubes with higher flexibility than FW, with a double-layer structure which utilizes a flame-retardant resin for the outer layer and an ether-based polyurethane resin for the inner layer.

Ether polyurethane resin for the inner layer is used to prevent degradation by water or mold under high temperature and high humidity.

Markings along the tubing as an insertion length indicator.
