Product information

Fluid used	Air	Water	General hydraulic oil
Operating temperature limit	-40℃～ +100℃	0℃～ +70℃	-40℃～ +100℃
Maximum working pressure	Millimeter size　1.6～ 5.0MPa Inch size1　2.3MPa Inch size2　4.8MPa

For multi-purpose piping.

Group 2 type endures up to 4.8MPa (at 20°C).

High oil resistance and heat resistance.

Fluid used	Air	Water	General hydraulic oil
Operating temperature limit	-40℃～ +120℃	0℃～ +70℃	-40℃～ +120℃
Maximum working pressure	Millimeter size　3.3～ 5.0MPa Inch size　4.0MPa

Suitable for high pressure application.

100% unplasticized nylon resin tubing.

Usable at a high temperature (up to 120°C).

High oil resistance and heat resistance.

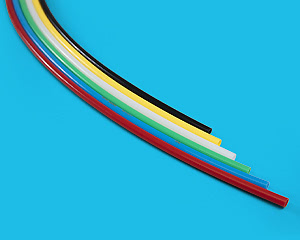

Fluid used	Air	Water	General hydraulic oil
Operating temperature limit	-40℃～ +100℃	0℃～ ＋50℃	-40℃～ +100℃
Maximum working pressure	Millimeter size　0.6～ 1.8MPa Inch size　0.8MPa

Most flexible nylon tubing among Nitta's line-up.

High oil resistance, heat resistance and abrasion resistance.

Fluid used	Air
Operating temperature limit	-40℃～ +100℃
Maximum working pressure	1.2MPa

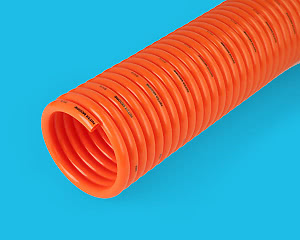

Suitable for elastic piping due to coil processing.

When it shrinks, fit into compactly because it has restorability.

High pressure resistance and heat resistance.

Fluid used	Air
Operating temperature limit	-40℃～ +100℃
Maximum working pressure	3.0MPa

Processed tubing for multi piping of up to 19 nylon tubes (N2 tubes) of φ6

bundled together.

Contribute to reduce space or improve high workability.
