EC-Ⅰ

Construction

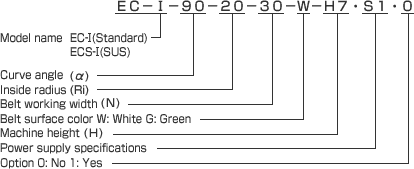

EC-Ⅰ Model and type number identification

Features

  • First-in-the-industry forward/reverse operation available.
  • Small rollers (ø 21) suitable for small load conveyance employed.
  • The belt has hygienic, anti-microbial and anti-mold specifications.
  • Light-weighted and economical.
  • One-touch mounting/release of the belt; no tool required.

Applications

Body Curve angle α (degrees) 90
Inside radius Ri (mm) 200
Belt working width N (mm) 200 300 400 500
Radius from the center
Rm (mm)
300 350 400 450
Machine height H (mm) H7 : 700 ± 100 H9 : 900 ± 100
Conveyor belt Nitta New Light Grip 1 ply
To the ( curve belt list).
Body paint color Silver metallic paint (no color assignment available)
ECS (SUS)
Performance Maximum conveying weight 98 N/set
Speed at the center of the belt
(m/min)
5 to 30 m/min (inverter)
Operating environment 0 °C to 40 °C (indoors); avoid direct sunlight, dust,
water or chemical exposure.
Motor Geared motor Motor 0.09 kw Power supply S1: 100 V (single phase)
S2: 200 V (single phase)

※200 V (3-phase) operation is optional.

  • For further details of the specifications, please contact us.

The specifications of this product are subject to change for improvements, etc. without prior notice.
