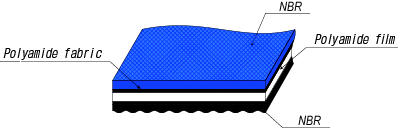

Construction

Features

• Special abrasion-resistant synthetic rubber (NBR) is used for the belt surface offering stable coefficient of friction and high abrasion resistance.
• High-quality oriented polyamide film is used for the tension member to offer high tensile strength.
• Excellent durability and high-speed driving by the thin and strong tension member.
• Highly reliable joints completed with specialized tools and glue.

Applications

Printing/paper converting Folder gluer/tube winder/paper converting machine/corrugated cardboard conveyor Others Machine tool/ball circulation conveyor for amusement machine

Product List

Belt type	Conveying surface	Driving surface	Main applications	Thickness [mm]	Tension after relaxation at 2 % elongation [N/mm width]	Minimum pulley diameter [mm]
						Power Transmission	Conveyor
SG-250			Printing machine Book binding machine Light-load conveyor (Plate support) Light load power transmission Canning machine	0.8	3.0	25	20
SG-350				0.95	5.2	35	30
SG-500				1.1	7.5	50	40
SG-750				1.35	11.2	75	50
SG-1000				1.6	15.0	100	60
L-250			Machine tools such as automatic lathes and high-speed drilling machines Tangential driving for open end spinning frame, high-speed spinning frame, etc. Spinning machine Cylinder driers and other driers Winder Router machine and other woodworking machines Folder gluer Light-load Conveyor (Roller support)	1.25	3.0	25	20
L-350				1.4	5.2	35	30
L-500				1.55	7.5	50	40
L-750				2.2	11.2	75	50
L-1000				2.45	15.0	100	60
L-1500				2.95	22.5	150	90
L-2000				3.45	30.0	200	120
M-250			Fan, pump and other industrial machine Tangential driving for textile machines, etc. Spinning frame Corrugated cardboard conveyor Folder gluer, paper milling machine Canning machine Saw mill Light-weight conveyor (Roller support)	2.2	3.0	25	25
M-350				2.35	5.2	35	35
M-500				2.5	7.5	50	40
M-750				2.75	11.2	75	50
M-1000				3.0	15.0	100	60
M-1500				3.5	22.5	150	90
M-2000				4.0	30.0	200	120
H-500			Tangential driving for textile machines, etc. Spinning frame Tube winding machine Driving roller for milling Generator/blower Cone pulley drive Abrasion-resistant conveyor	3.5	7.5	50	50
H-750				3.75	11.2	75	60
H-1000				4.0	15.0	100	75
H-1500				4.5	22.5	150	120
XH-500-4			Folder gluer (Folding and delivery sections)	4.0	3.8 (at 1 % elongation)	60	40
CBX-7S			Corrugators	4.2	7.5 (at 1 % elongation)	-	75
CBE-20			Canning machine	7.0	3.0 (at 0.5 % elongation)	-	100
NRT-0			Plywood convey. Corrugated cardboard conveyor.	5.5	0.65 (at 1 % elongation)	-	100
NRT-100			Corrugated cardboard conveyor.	4.5	3.0 (at 0.5 % elongation)	-	50
NRT-300			Corrugated cardboard conveyor.	6.5	3.0 (at 0.5 % elongation)	-	100
NRT-500			Corrugated cardboard conveyor.	6.0	3.8 (at 1 % elongation)	-	90
RT-300			Corrugators	7.0	3.0 (at 0.5 % elongation)	-	100
