Features

• Large bore cylinder and high rigid body
• Secure chuck / unchuck with cam lock system
• Reliable component configuration and low price
• Module compatible with NITTAOMEGA IV



Application

• Change of large-sized material handling tools
• Change of large-sized welding guns
• Change of various tools with heavy load



Dimensional outline



Specifications

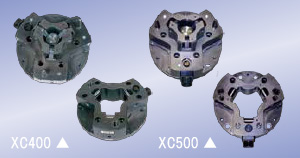

		NITTAOMEGA XC400	NITTAOMEGA XC500
Payload capacity		400kg	500kg
Allowable moment		2942Nm（30000kgf・cm）	3500Nm（35700kgf・cm）
Allowable torque		2942Nm（30000kgf・cm）	3500Nm（35700kgf・cm）
Housing diameter		φ270mm
Combined profile		150mm
Main body material		Aluminum Alloy
Position repeatability		0.050mm
Air pressure for Working		0.39～0.85MPa（4～8.7kg/cm2）
Weight	Robot side	12.0kg
	Tool side	8.0kg
Electrical signal	Current	3A
	Quantity	None or 20 pins
Output signal		Chuck
		Unchuck
		Face
Surrounding Condition	Temperature	0～60℃ *1
	Humidity	0～95％RH *2

＊1 No freeze
＊2 No condensation





（NITTAOMEGA XC400）/ （NITTAOMEGA XC500）





*We have 24V common type and adaptor plates.
*We have more than 400kg payload product.
