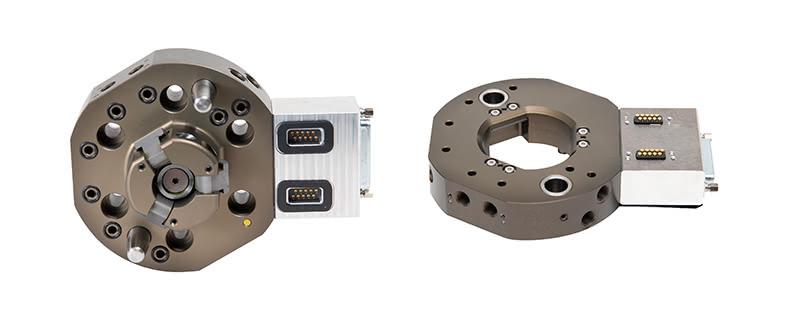

NITTAOMEGA type S50-S
Click here for drawings
Features
- Contact and detachment sensors as standard equipment
- ISO flange adaptable
Applications
- Tool exchange upon removal of press/molded items
- Material handling exchange upon arc/spot welding
- Tool exchange in deburring/polishing/assembly
- Material handling exchange

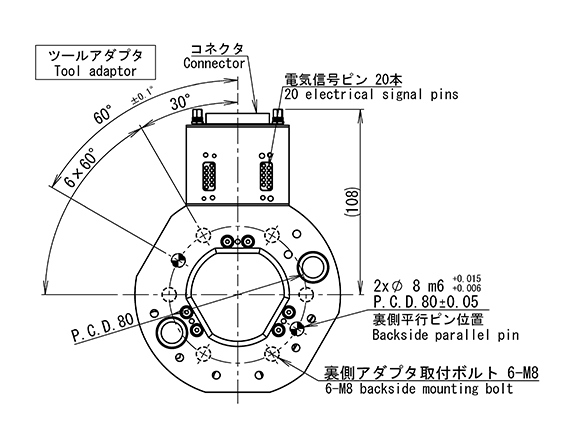

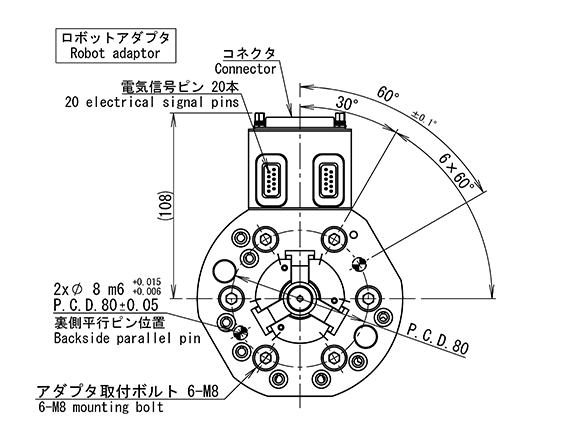

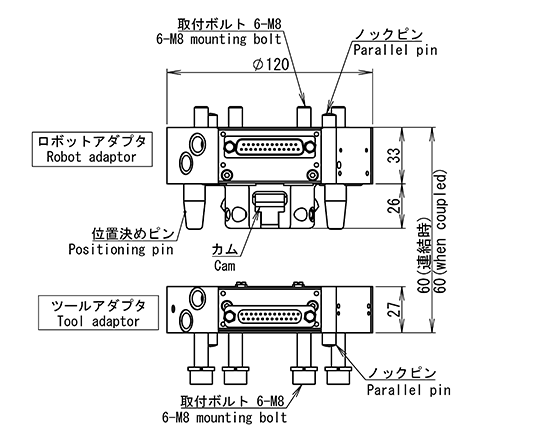

External dimensions
Specification
| Adaptor specification | Payload | 25~50kg | |
|---|---|---|---|
| Allowable moment | 377Nm | ||
| Allowable torque | 377Nm | ||
| Outer size | φ120mm | ||
| Thickness when coupled | 60mm | ||
| Main body material | Aluminum alloy | ||
| Position repeatability | ±0.010mm | ||
| Operational air pressure | 0.39~0.85MPa | ||
| Main body weight | Robot side | 1.2kg | |
| Tool side | 0.7kg | ||
| Electrical signals | Current | 3A | |
| No. of signals | None or 20 signals | ||
| Air ports | No. of ports | Rc1/8:8 ports (no valve) |
|
| Effective sectional area | 5.81mm2/port | ||
| Cv value | 0.31/port | ||
| Withstand pressure | 0.85MPa | ||
| Output signals | Chuck signal | ||
| Unchuck signal | |||
| Face signal | |||
| Environment | Ambient temperature | 0~60℃ (No freezing) | |
| Ambient humidity | 0~95%RH (No condensation) | ||
BrochureStandard model
| GGR20-8PS01 Robot adapter(NPN spec) GGT20-8PC00 Tool adapter |
PDF Data | 2D CAD Data (DXF) |
3D CAD Data (STEP) |
NPN spec wiring diagram |
|---|---|---|---|---|
| GGR20-8PS00 Robot adapter(PNP spec) GGT20-8PC00 Tool adapter |
PNP spec wiring diagram |
*Please enter your information for downloading CAD data.
*The external dimensions are the same for both NPN and PNP spec.
