PolySprint™

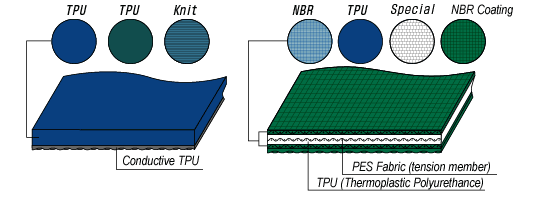

Construction

Elastic type Polyester fabric member type

Features

  • Easy splicing without experience or adhesive. Using the special tool, the belt can be spliced on site in a short time.
  • A polyester woven fabric is employed as a tension member. No stretching due to humidity change, offering good dimension stability
  • Applicable at high belt speed and small pulley diameter, due to finger splicing.
  • Excellent abrasion resistance due to Nitta's proprietary synthetic rubber and special woven fabric.
  • No tension mechanism required; can be used with fixed shaft distance. (Elastic type)

Applications

  • Elastic type

Mail sorter, bank note conveyor, packaging machine, book binding machine, etc.

  • Polyester woven fabric series

Mail sorter, printer, roller conveyor, etc.

Product List

Elastic type

Click the belt type of your interest to view the relevant technical information.

Belt type Conveying
surface
Driving
surface
Surface material Main applications Thickness
[mm]
Tension after relaxation*1
[N/mm width]
Minimum
pulley diameter
[mm]
Forward Reverse
TA09 TPU
/TPU
Mail sorter,
bank note
insertion
conveyor
0.9 0.5
(at 5 % elongation)
20 20
TA12 TPU
/TPU
Mail sorter, packaging 1.2 0.7
(at 5 % elongation)
25 25
TA-S6 TPU
/TPU
Mail sorter 0.9 0.7
(at 5 % elongation)
25 25
NTA Knit
/TPU
Mail sorter, packaging 1.0 0.5
(at 5 % elongation)
25 25
TC TPU
/TPU
Mail sorter 1.4 0.8
(at 5 % elongation)
40 40
HTA09 TPU
/TPU
Mail sorter, bookbinding 0.9 0.5
(at 5 % elongation)
25 25
STC-10 Knit
/TPU
Stacker 1.35 0.5
(at 5 % elongation)
25 25

*1 The tension after 200 hours of running (23 °C , 50 %RH)

*2 Actual color may slightly differ from the image you see.



Polyester fabric type

Click the belt type of your interest to view the relevant technical information.

Belt type Conveying
surface
Driving
surface
Surface material Main
applications
Thickness
[mm]
Tension after relaxation *1[N/mm width] Minimum
pulley diameter
[mm]
Forward Reverse
FZ-5E12 NBR
/NBR
Printing
/bookbinding
1.25 5
(at 1 % elongation)
25 35
W-4E14 TPU
/TPU
Cross cutter 1.4 4
(at 1 % elongation)
25 25
TTE-4E18NF Fabric
/fabric
Gravure printing
/bookbinding
1.8 4
(at 1 % elongation)
40 40
TTF-4E10 Fabric
/fabric
Bookbinding 1.0 4
(at 1 % elongation)
15 15
DB-4E14 TPU
/TPU
Mail sorter 1.4 4
(at 1 % elongation)
25 25
LA-4E14 NBR
/NBR
Printing
/bookbinding
Roller conveyor
1.4 4
(at 1 % elongation)
25 25
TFL-15E20 NBR
/NBR
Printing
/bookbinding
Roller conveyor
2.0 15
(at 1 % elongation)
25 25
※1 : The tension after 200 hours of running (23 °C , 50 %RH)
※2 : Actual color may slightly differ from the image you see.
※3 : Types other than above are also available. Please contact us.
※4 : Technical data is not stated .If you have a question, please contact us.
※5 : The specification is subject to change for improvement without notice.
Ready-to-use Endless Belt

Splicing Tools

Type Finger Puncher Press
Heat Press Cooling Press
Item No FP30-10-50N NPS-3050H1 NPS-3050C
FingerLength Pitch 30L×10P 30L×10P 30L×10P
Features Single action punching system ~200℃
Max Belt Width 10~50mm 10~50mm
Max Belt Thickness 2mm 2mm
Appearance FP-30-10-50N NPS-3050H1 NPS-3050C
